Plane Pattern Carbon Aramid Fabric Carbon Blue Carbon Kevlar Hybrid Fabric

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: C03K15J-F260
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: Negotiation
Packaging Details: carboard tube+plastic bag+carton box+pallet
Delivery Time: 2weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000m per month

Detail Information

Weaving: Jacquard-plane Color: Black/blue
Raw Material: 1500D Kevlar Filament Yarn / 3K Carbon Filament Yarn Width: 50~150cm
Weight: 260gsm Thickness: 0.4mm
High Light:

carbon kevlar hybrid fabric


carbon kevlar fabric


plane pattern carbon aramid fabric

Product Description

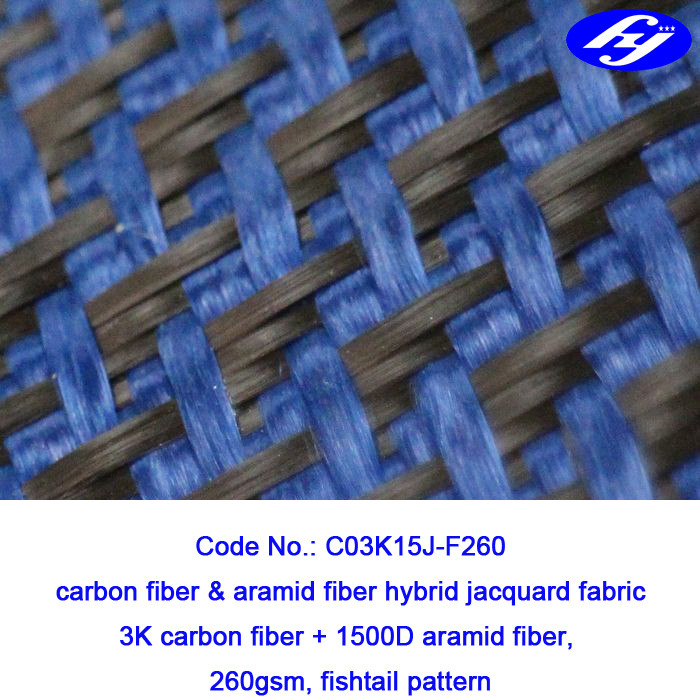

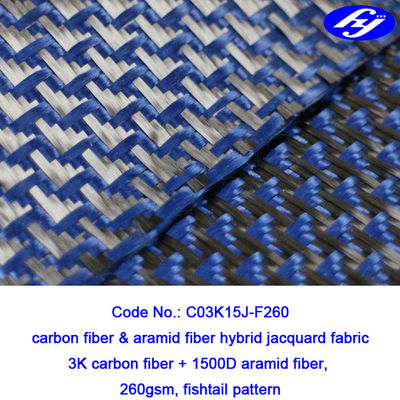

Plane Pattern Carbon Aramid Fabric Carbon Blue Carbon Kevlar Hybrid Fabric



Plane pattern carbon blue Kevlar aramid jacquard hybrid fabric is woven by 3K carbon fiber filament yarn with 1500D blue Kevlar aramid fiber filament yarn, carbon aramid fabric has the great performance of composite materials in impact strength, rigidity and tensile strength.The main role of hybrid fabric is to increase the intensity of the civil construction, bridges and tunnels, vibration, reinforced concrete structure and stronger materials.



1) The surface of the fabric is beautiful and it's smooth because of the good weaving.

2) It improves the mechanical properties of the parts.

3) It has high tensile strength because of the properties of carbon and aramid.

4) It has good abrasion and corrosion resistance

5) It has high electric conductivity becuase of carbon fiber

6) The fabric has a wide temperature range

7) The woven fabric has low flammability



Technical Data:

Weaving Jacquard - plane pattern
Yarn Warp 3K Carbon fiber yarn
Weft  1500d Kevlar yarn
thread count Warp 7 per cm
Weft 7 per cm
Weight 260gsm
Thickness 0.4 mm
Width 50~150 cm


Technial Data Sheet Download: C03K15J-F260 carbon Kevlar Fishtail.pdf


Plane Pattern Carbon Aramid Fabric Carbon Blue Carbon Kevlar Hybrid Fabric 0


Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.


We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!
