1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: SUP-PS
Payment & Shipping Terms:
Minimum Order Quantity: 10m
Price: Negotiation
Packaging Details: carton box ~ carbon fiber / glass fiber / carbon glass hybrid Winding SUP Paddle Shaft
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000meter per month

Detail Information

Process: Winding Color: Black/white
Raw Material: 3K Carbon, Glass, Expoy Resin Length: Customized
Origin: China
High Light:

Hybrid Winding SUP Paddle Shaft


Carbon Fiber SUP Paddle Shaft


1.0mm SUP Paddle Shaft

Product Description

carbon fiber / glass fiber / carbon glass hybrid Winding SUP Paddle Shaft


There are 3 kinds of SUP paddle shaft which are made by different materials: carbon, glass and carbon glass hybrid. All shafts are made by winding proesss to ensure optimum control of fiber preload and resin distribution throughout the infiltration (avoiding defects caused by air bubbles that may be produced between the layers). All paddle shafts can be precisely controlled to match all the blades and handles you can design. The high-grade shaft has a high carbon fiber content to reduce the weight of the entire shaft and significantly improve the reaction speed and overall performance.


SUP Paddle Shaft Parameter Table

Weight (g) FLEX (mm) ID (mm) Wall Thickness(mm)
Oval Carbon 250 25, 30 35, 40 27.5/32 1.0
Oval Glass 330 30 35, 40, 45 27.5/32 1.2
Adult Carbon 230 25, 30 35, 40 26.5 1.0
Adult Carbon Adj. 260 30 35, 40, 45 26.5 1.0
Kids Carbon 190 25, 30 35, 40 24 1.0
Kids Carbon Adj. 220 30 35, 40, 45 24 1.0
Adult Glass 320 25, 30 35, 40 26.5 1.2
Adult Glass Adj. 370 30 35, 40, 45 26.5 1.2
Kids Glass 270 25, 30 35, 40 24 1.2


There are 2 kinds of winding process as below:


1) Dry winding

The main raw material for making carbon fiber tubes by dry winding is carbon fiber prepreg tow. The raw material supplier will accurately control the resin content of the tow when making the prepreg tow, so the quality stability of the manufactured product is relatively easy control. This production method has high efficiency, and the production environment is clean and hygienic, but the raw material price is higher and the storage conditions are higher.



2) Wet winding

This method is mainly to soak the carbon fiber filament tow in the resin first, then wind the soaked tow continuously on a stainless-steel core mold through the control of tension to make a core mold tube.

This method is the mainstream way of making high-performance carbon fiber tubes. The main advantages are: economical process, which can effectively reduce production costs; the internal sealing effect of the product is good, the internal air is extruded, and the porosity of the product is greatly reduced; the fiber layout is balanced Smooth; resin lubricated, can reduce carbon fiber wear during production; production speed is fast. The disadvantages are: there is a certain waste of resin raw materials; the accuracy of the resin content is difficult to control accurately; the environmental friendliness is low.

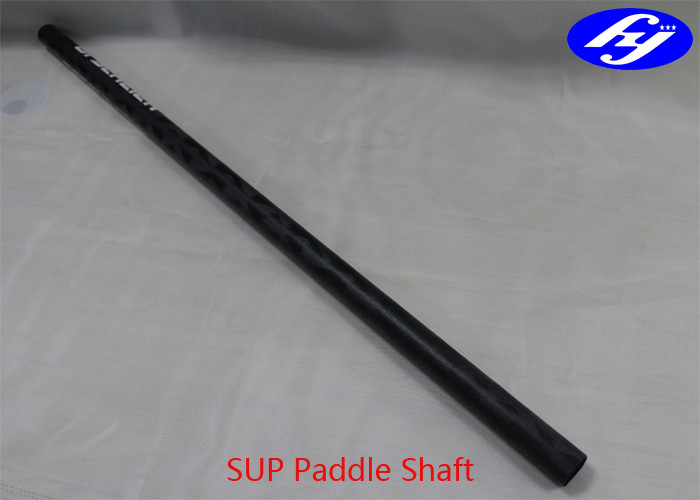

1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 0


1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 1


1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 2


1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 3


1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 4




1.0mm 3K Carbon Fiber Hybrid Winding SUP Paddle Shaft 5



1. Light weight and strong strenght
2. Excellent durance.
3. Corrosion resistance
4. Excellent planeness
5. Nice appearance


1. RC Toy model , Aeromodelling, Helicopter Model.
2. Electrical products.
3. Shipbuilding.
4. Space aviation defense.
5. Sports equipments.
6. Automobile parts.
7. Wind power blades.
8. Spinning Reels Brake Rotor friction plate, Rocker.
9.Medical device(X-ray, DR).
10. Etc.



Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.


We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!



Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.


Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.


Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.


Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.


Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.


Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.


Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.


Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.


Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
