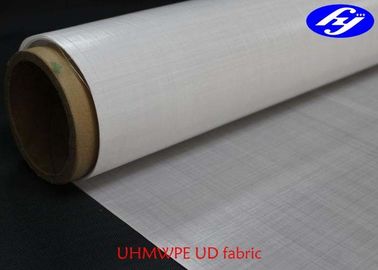

Bullet Proof Vest 0.21mm 145gsm Non Woven UHMWPE Fabric

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: UPU4-145A
Payment & Shipping Terms:
Minimum Order Quantity: 2000m
Price: Negotiation
Packaging Details: 145gsm Non-woven polyethylene unidirectional fabric liner sheet For Bullet Proof Vest, plastic bag + carton box + pallet
Delivery Time: 10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000m per month

Detail Information

Weaving: Non-woven Color: White
Raw Material: UHMWPE Fiber Yarn Width: 1.2m
Weight: 145gsm +/-5g Thickness: 0.21mm
Construction: 0/90/0/90
High Light:

Non Woven UHMWPE Fabric


Bullet Proof Vest UHMWPE Fabric


145gsm UHMWPE Fabric

Product Description

145gsm Non-woven polyethylene unidirectional fabric liner sheet For Bullet Proof Vest



145gsm Non-woven polyethylene unidirectional fabric liner sheet For Bullet Proof Vest is compounded by UHMWPE fiber with particular processes by our advanced high-tech equipment. It has the characters and superior performances such as high tensile strength, large modulus, soft texture, impact resistance, cutting resistance, high flexibility, acid & alkaline resistance, sunshine proof, soaking proof and moisture proof. Because of the advantages, it is widely used in the applications like bullet proof vests, bullet proof helmets, bullet proof armor plates, stab proof and cutting proof clothes as well as special public anti-explosion facilities and safety protection facilities.


Technical data:

Unit Weight 145±5g/m2
Yarn 800 Denier
Direction 0° /90°/0°/90°
Width 1.2m
Thickness 0.21 mm
Protection requirements Layers Product unit weight Standard
China Public Security Level 2 35 5.08kgs/m2 GA141-2010
China Public Security Level 3 45 6.53kgs/m2 GA141-2010
NIJ IIIA 9mm 30 4.35kgs/m2 NIJ0101.04
NIJ IIIA .44 38 5.51kgs/m2 NIJ0101.06


Yarn used: 800D/736F

Physical Properties Unit Nominal Result Test Method
Count dtex / 881 GB/T14343
Count CV % ±4.0 -0.8
Breaking Tenacity CN/dtex ≥34.0 36.1 GB/T19975
Modulus CN/dtex ≥1250 1670
Breaking Elongation % ≤4.0 2.8


Technical Data Sheet Download: UPU4-145A.pdf


Bullet Proof Vest 0.21mm 145gsm Non Woven UHMWPE Fabric 0


Bullet Proof Vest 0.21mm 145gsm Non Woven UHMWPE Fabric 1


Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.


We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!




Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.


Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.


Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.


Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.


Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.


Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.


Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.


Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.


Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
