Lightweight 55gsm Toray 12K T800 Woven Fabric for UAV Body Structure Thickness 0.07mm Raw Material Carbon Yarn

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: CS16PR-T800-55
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: roll on carboard tube+carton box+pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000meter per month

Detail Information

Weaving: Plain Color: Black
Raw Material: Toray 12K Carbon Yarn Width: 100cm
Weight: 55gsm Thickness: 0.07mm
Highlight:

T800 Woven Fabric

,

55gsm Lightweight Woven Fabric

Product Description

light spread tow fabric 55gsm woven by Toray 12K T800 for UAV body structre

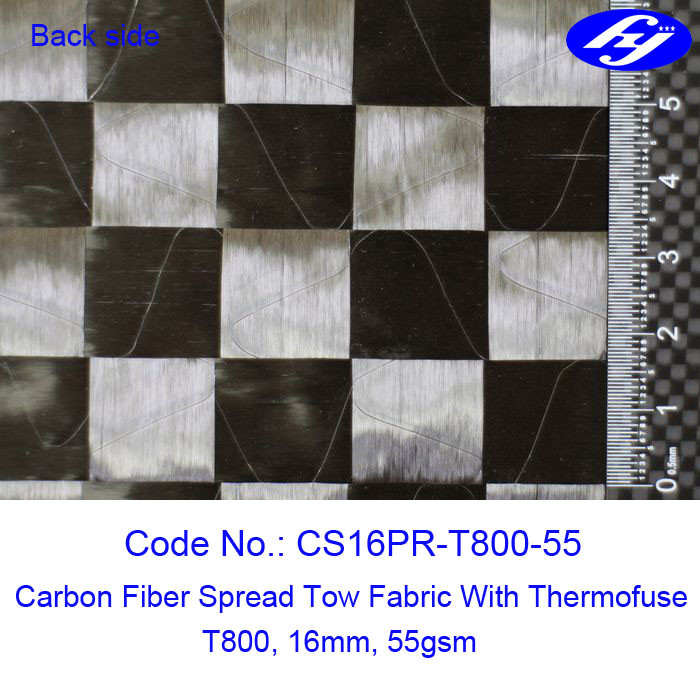

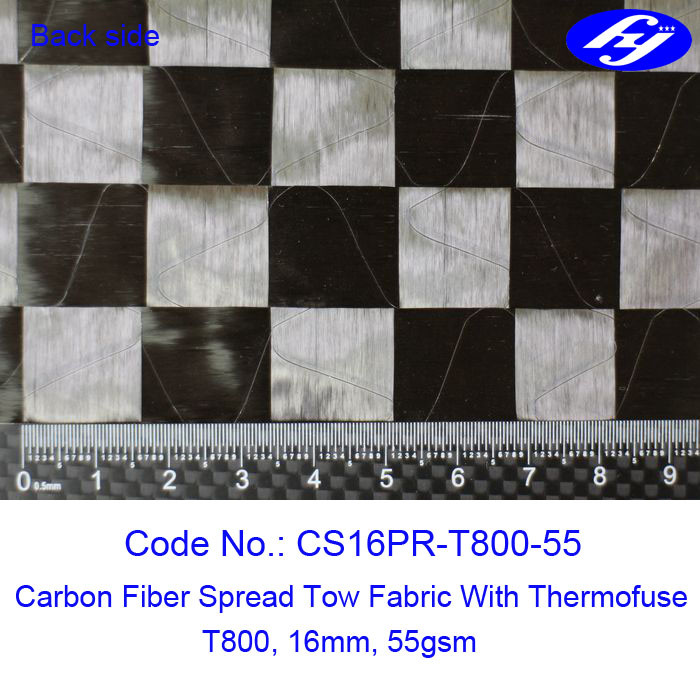

Ultralight Toray 12K T800 16mm wide 55gsm carbon fiber spread tow fabric is woven by carbon spread tow back side with thermo fuse, compared with carbon woven fabric, it's much more thinner. tCarbon fiber fabric is compatible with various resin systems including epoxy, polyester and vinyl ester resins. Because of so many outstanding features carbon fiber fabric is widely used in various fields like aerospace, auto parts, sports equipment, building reinforcements, decorations, etc.





The light spread tow fabric, weighing 55gsm, is a woven fabric specifically designed for the body structure of UAVs (Unmanned Aerial Vehicles). It is woven by Toray, a renowned manufacturer, using 12K T800 carbon fiber. Here is a description of this fabric:

The fabric is characterized by its spread tow construction, which refers to the arrangement of carbon fibers in a wider, flat configuration. This construction technique allows for a more uniform and optimized distribution of fibers, resulting in enhanced strength and stiffness properties.

Weighing 55 grams per square meter (gsm), the fabric is lightweight, making it suitable for UAV applications where weight reduction is critical. The low weight of the fabric contributes to the overall weight savings of the UAV, leading to improved flight performance, increased payload capacity, and longer flight endurance.

The fabric is woven using 12K T800 carbon fiber, indicating that each individual carbon filament consists of 12,000 strands and is made from the T800 grade carbon fiber material. The T800 carbon fiber is known for its excellent mechanical properties, including high tensile strength, stiffness, and fatigue resistance.

Due to its spread tow construction and high-quality carbon fiber, the fabric offers exceptional strength-to-weight ratio, providing structural integrity and durability to UAV body structures. It can withstand the stresses and loads experienced during flight, ensuring the UAV's stability and reliability.

The light spread tow fabric is designed to be compatible with various manufacturing processes, including resin infusion, vacuum bagging, and autoclave curing. This allows for efficient and cost-effective fabrication of UAV body structures while maintaining the desired mechanical properties.

Toray, as the manufacturer of the fabric, is recognized for its expertise in carbon fiber and composite materials. Their reputation for producing high-quality materials ensures the reliability and performance of the fabric for UAV applications.

Overall, the light spread tow fabric with a weight of 55gsm, woven by Toray using 12K T800 carbon fiber, is an excellent choice for UAV body structures. Its lightweight nature, combined with the strength and stiffness properties of carbon fiber, makes it ideal for achieving optimal performance, durability, and weight savings in UAV designs.



Advantages:

--- Low density with high tensile strength and high modulus

--- Extra high temperature resistanceunder non-oxidizing environment

--- Excellent electrical and thermal conductivity

--- Good fatigue resistance, abrasion resistance and corrosion resistance

--- Good electromagnetic shielding and X-ray permeability

--- Insoluble and non-swelling in the organic solvent, acid, alkali



Technical data:
Code Numer Woven Warp(mm) Weft(mm) Thickness(mm) Unit weight(gsm) Width(cm)
CS08P-T700-200 Plain 8 8 0.18 200 100
CS16P-T700-100 Plain 16 16 0.11 100 100
CS20PR-T700-80 Plain 20 20 0.10 80 100
CS24PR-T700-67 Plain 24 24 0.08 67 100

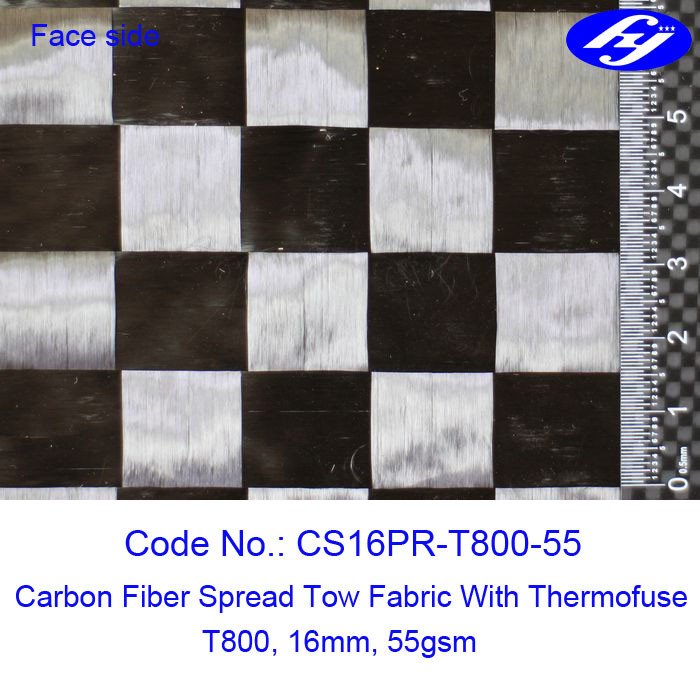

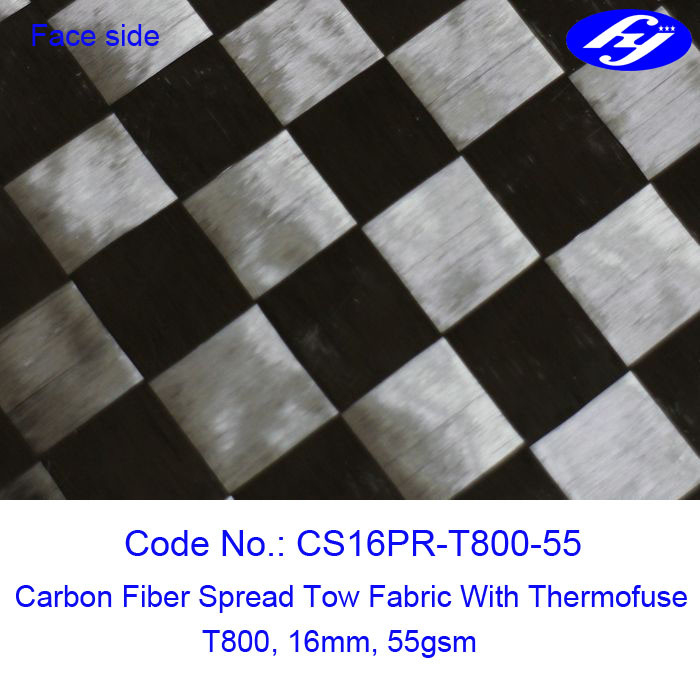

CS16PR-T800-55 Plain 16 16 0.07 55 100
CS20PR-T800-44 Plain 20 20 0.06 44 100
CS24PR-T800-37 Plain 24 24 0.05 37 100



Specification sheet download: CS16PR-T800-55 T800 16mm carbon spread tow fabric...





Lightweight 55gsm Toray 12K T800 Woven Fabric for UAV Body Structure Thickness 0.07mm Raw Material Carbon Yarn 0



Lightweight 55gsm Toray 12K T800 Woven Fabric for UAV Body Structure Thickness 0.07mm Raw Material Carbon Yarn 1







Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.



We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!



RFQ:

Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.



Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.



Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.



Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.



Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.



Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.



Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.



Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.



Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
