light spread tow fabric 55gsm woven by Toray 12K T800 for UAV body structre
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Huaiying |
Model Number: | CFT12 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 100m |
Price: | Negotiation |
Packaging Details: | roll on carboard tube+carton box+pallet |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000meter per month |
Detail Information |
|||
Weaving: | 2x2 Twill | Color: | Black |
---|---|---|---|
Raw Material: | 12K Carbon Yarn | Width: | 50~150cm |
Weight: | 400~640gsm | Thickness: | 0.46~0.64mm |
High Light: | carbon fiber print fabric,carbon fiber mesh fabric,2x2 carbon fiber woven fabric |
Product Description

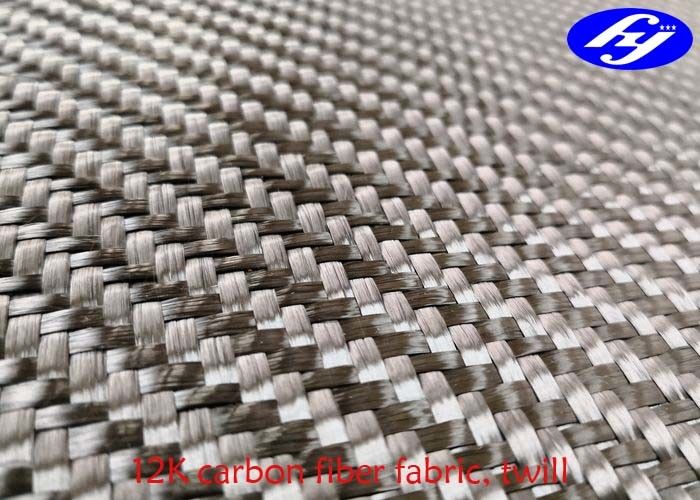

2x2 Twill Carbon Fiber Woven Fabric 12K For Surfboard Reinforcement
2x2 twill 12K carbon fiber woven fabric for surfboard reinforcement is woven by shuttleless loom with carbon fiber filament. According to weave pattern, carbon fiber fabrics include plain, twill and satin. Carbon fiber fabric is compatible with various resin systems including epoxy, polyester and vinyl ester resins. Because of so many outstanding features carbon fiber fabric is widely used in various fields like aerospace, auto parts, sports equipment, building reinforcements, decorations, etc.
Advantages:
--- Low density with high tensile strength and high modulus
--- Extra high temperature resistanceunder non-oxidizing environment
--- Excellent electrical and thermal conductivity
--- Good fatigue resistance, abrasion resistance and corrosion resistance
--- Good electromagnetic shielding and X-ray permeability
--- Insoluble and non-swelling in the organic solvent, acid, alkali
Weaving | 2 x 2 twill | |
Yarn | Warp | Carbon fiber yarn 12K |
Weft | Carbon fiber yarn 12K | |
thread count | Warp | 2~4per cm |
Weft | 2~4 per cm | |
Weight | 400~640 g/m2 | |
Thickness | 0.46~0.42 mm | |
Width | 50~150 cm |
Different normal weaving and unit weight available as below:
Weave | Code No. |
Weight (g/m2) |
Thickness (mm) |
Fiber type | Fiber count |
Width (cm) |
||
Warp | Weft | Warp | Weft | |||||
Plain | CFP01-93 | 93 | 0.14 | 1K | 1K | 7 | 7 | 50~150 |
CFP01-100 | 100 | 0.15 | 7.5 | 7.5 | ||||
CFP01-120 | 120 | 0.16 | 9 | 9 | ||||
CFP01-140 | 140 | 0.17 | 10.5 | 10.5 | ||||
CFP01-160 | 160 | 0.23 | 3K | 3K | 4 | 4 | ||
CFP03-180 | 180 | 0.24 | 4.5 | 4.5 | ||||
CFP03-200 | 200 | 0.25 | 5 | 5 | ||||
CFP03-220 | 220 | 0.28 | 5.5 | 5.5 | ||||
CFP03-240 | 240 | 0.30 | 6 | 6 | ||||
CFP03-260 | 260 | 0.32 | 6.5 | 6.5 | ||||
CFP03-280 | 280 | 0.36 | 7 | 7 | ||||
CFP06-320 | 320 | 0.38 | 6K | 6K | 4 | 4 | ||
CFP06-400 | 400 | 0.42 | 5 | 5 | ||||
CFP12-300 | 300 | 0.38 | 12K | 12K | 1.875 | 1.875 | ||
CFP12-480 | 480 | 0.52 | 3 | 3 | ||||
CFP12-560 | 560 | 0.58 | 3.5 | 3.5 | ||||
CFP12-640 | 640 | 0.64 | 4 | 4 | ||||
Twill | CFT01-120 | 120 | 0.16 | 1K | 1K | 9 | 9 | |
CFT01-140 | 140 | 0.17 | 10.5 | 10.5 | ||||
CFT03-200 | 200 | 0.25 | 3K | 3K | 5 | 5 | ||
CFT03-220 | 220 | 0.28 | 5.5 | 5.5 | ||||
CFT03-240 | 240 | 0.30 | 6 | 6 | ||||
CFT03-280 | 280 | 0.34 | 7 | 7 | ||||
CFT06-280 | 0.36 | 6K | 6K | 3.5 | 3.5 | |||
CFT06-320 | 320 | 0.38 | 4 | 4 | ||||
CFT06-400 | 400 | 0.42 | 5 | 5 | ||||
CFT12-400 | 0.46 | 12K | 12K | 2.5 | 2.5 | |||
CFT12-480 | 480 | 0.52 | 3 | 3 | ||||
CFT12-560 | 560 | 0.58 | 3.5 | 3.5 | ||||
CFT12-640 | 640 | 0.64 | 4 | 4 |
Why choose us:
carbon/aramid/UHMWPE fibers and relative products;
which offer good prices and stable good quality;
the products to client and help them to find a total solution.
We supply competitive price, high quanlity and satisfied service!
You will find we are the right supplier you are looking for!
RFQ:
Q1: Can I have a sample order?
A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.
Q2: What is the lead time of an order?
A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.
Q3: Do you have any MOQ limit?
A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.
Q4: Can you accept mixed batch of different products?
A: Yes, we support different products mixed.
Q5: How do you ship the goods?
A: We can ship the goods by sea, air, train or courier.
Q6: Can you pack the goods on pallet or in crate?
A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.
Q7: Can you print our logo on the outer package?
A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.
Q8: Can we visit your company and factory?
A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.
Q9: What is your payment terms?
A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
