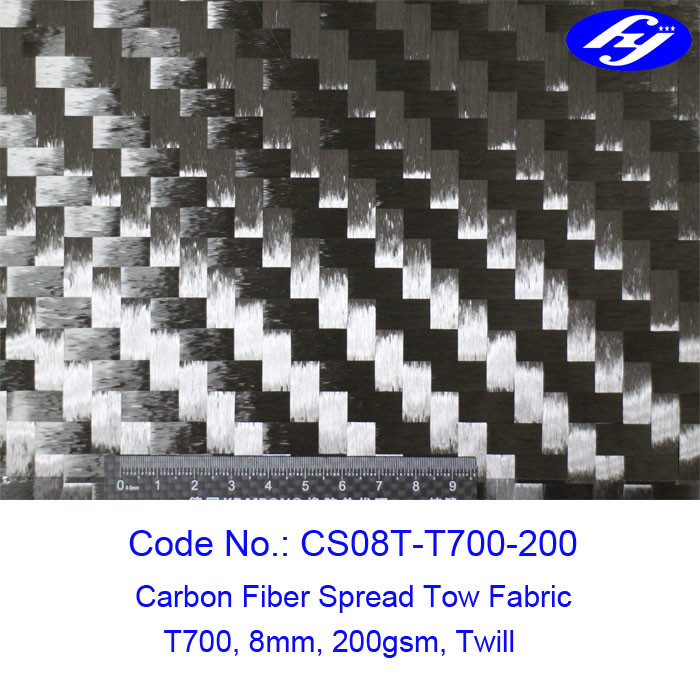

Twill Weave 12K Toray Spread Tow Carbon Fiber Fabric

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: CS08T-T700-200
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: roll on carboard tube+carton box+pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000meter per month

Detail Information

Weaving: Twill Color: Black
Raw Material: Toray 12K Carbon Yarn Width: 100cm
Weight: 200gsm Thickness: 0.18mm
High Light:

12K Toray Carbon Fiber Fabric

,

Spread Tow Carbon Fiber Fabric

,

Twill Weave Carbon Fiber Fabric

Product Description

T700 12K Toray Carbon 8mm Spread Tow Fabric 200gsm Twill Pattern





T700 12K Toray Carbon 8mm Spread Tow Fabric 200gsm twill Patternis woven by carbon spread tow, compared with carbon woven fabric, it's much more thinner. tCarbon fiber fabric is compatible with various resin systems including epoxy, polyester and vinyl ester resins. Because of so many outstanding features carbon fiber fabric is widely used in various fields like aerospace, auto parts, sports equipment, building reinforcements, decorations, etc.



Advantages:

--- Low density with high tensile strength and high modulus

--- Extra high temperature resistanceunder non-oxidizing environment

--- Excellent electrical and thermal conductivity

--- Good fatigue resistance, abrasion resistance and corrosion resistance

--- Good electromagnetic shielding and X-ray permeability

--- Insoluble and non-swelling in the organic solvent, acid, alkali



Technical data:
Code Numer Woven Warp(mm) Weft(mm) Thickness(mm) Unit weight(gsm) Width(cm)
CS08P-T700-200 Plain 8 8 0.18 200 100
CS16P-T700-100 Plain 16 16 0.11 100 100
CS20PR-T700-80 Plain 20 20 0.10 80 100
CS24PR-T700-67 Plain 24 24 0.08 67 100
CS16PR-T800-55 Plain 16 16 0.07 55 100
CS20PR-T800-44 Plain 20 20 0.06 44 100
CS24PR-T800-37 Plain 24 24 0.05 37 100



Technial Data Sheet Download: CS08T-T700-200 carbon spread tow fabric.pdf



Twill Weave 12K Toray Spread Tow Carbon Fiber Fabric 0



Twill Weave 12K Toray Spread Tow Carbon Fiber Fabric 1



Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.



We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!



RFQ:

Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.



Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.



Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.



Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.



Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.



Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.



Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.



Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.



Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
